Trex Transcend® Railing

Transcend railing offers you the freedom to combine colors and materials.

Mix & Match – No other Trex railing line offers the freedom to mix and match infill and rails like Trex Transcend.
Timeless Design – Transcend puts every color combination within reach. Get style-specific or eliminate the guesswork with pre-designed kits.
Durable & Reliable – As strong and sturdy as its namesake decking, this composite railing won’t rot, warp, peel or splinter (which trumps sanding row after row of wooden balusters any day), and it never needs painting or staining. Ever.

Trex Transcend Railing Colors

Elevated aesthetics paired with the highest level of performance. Trex Transcend railing gives you the freedom to mix and match composite rails with composite or aluminum balusters to custom railing look for your outdoor space. Multiple railing options available.

Please click on each color to see rail examples.

Trex Transcend® Railing Pricing

Trex Transcend Railing starts around $60.00 a linear foot.

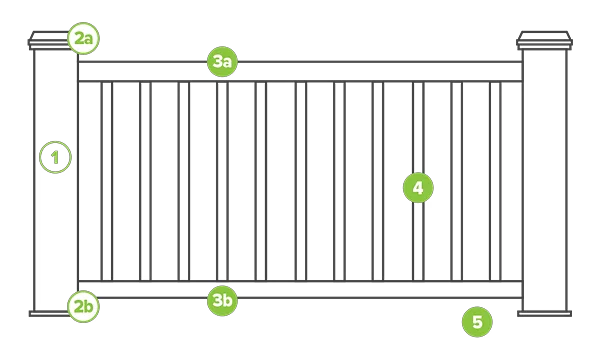

Trex Transcend® Railing Components

Transcend is either a 5-step or 3-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3–5).

1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleeve Skirt
3a. Top Rail
3b. Bottom Rail
4. Balusters
5. Accessory Infill Kit

Transcend also offers a simple, 3-step option if you choose a rail & baluster kit.

Post Components, Rails, Infill, Kits

1. 4” Post Sleeve

Fits over 4”x4” Pressure-Treated Post.

4” X 4” X 39”/108” – Actual External Dimensions

4.45” x 4.45” x 40” (113mm x 113mm x 101 cm
4.45” x 4.45” x 108” (113mm x 113mm x 274 cm)

2A. Flat Post Sleeve Cap

Hollow sleeve that fits over a solid, pressure-treated post or post mount.

Fits over 4”x4” Pressure-Treated Post.

Available in Classic White only.

6” X 6” X 39”/108” – Actual External Dimensions

5.5” x 5.5” x 39” (139 mm x 139 mm x 990 mm)
5.5” x 5.5” x 108” (139 mm x 139 mm x 274 cm)

Aluminum Joist Mount Post

12 per box. Cap topping each post is the decorative finish that also withstands the weather.

6” Available in Classic White only.

Actual External Dimensions:

4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55” (140mm x 140mm)

2B. Post Sleeve Skirt

12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap.

6” Available in Classic White only.

Actual External Dimensions:

4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
6” x 6”: 5.55” x 5.55” (140mm x 140mm)

3. Rail & Baluster Kit - Composite

Includes: Crown Top Rail, Universal Bottom Rail, Square Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

6’ x 36” Rail & Baluster Kit – Composite:
Horizontal – available in Classic White, Charcoal Black and Vintage Lantern
Stair – available in Classic White

8’ x 36” Rail & Baluster Kit – Composite:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

3. Rail & Baluster Kit - Aluminum

Includes: Crown Top Rail, Universal Bottom Rail, Round Aluminum Balusters, Baluster Spacers, Adjustable Foot Block and Mounting Hardware

6’ x 36” Rail & Baluster Kit – Aluminum:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

8’ x 36” Rail & Baluster Kit – Aluminum:
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

Actual dimensions: 6’ Rail: 67.5 in x 36 in (171 cm x 914 mm); 8’ Rail: 91.5 in x 36 in (232 cm x 914 mm)

3A. Crown Top Rail

Horizontal rail attached to the top of the balusters and the posts.

Actual Length
Horizontal and Stair – available in Classic White, Charcoal Black and Vintage Lantern

6’ Rail: 67.5” (171 cm)
8’ Rail: 91.5” (232 cm)

3A/3B. Transcend Universal Top/Bottom Rail

Horizontal rail attached to both the top and bottom of the balusters and the posts; the top rail portion serves as base for the installation of a deck board that acts as a cocktail rail.

Actual Length
6’ Rail:67.5” (171 cm)
8’ Rail:91.5” (232 cm)

4. Round Aluminum Baluster

20 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts.

Actual Dimensions
36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
42” Rail Height: .75” x 36.25” (19 mm x 920 mm)

4. Square Baluster

16 per pack
Vertical rungs–sometimes called spindles–that fill the space between posts.

Actual Dimensions
36” Rail Height: 1.418” x 1.418” x 30.375” (36 mm x 36 mm x 771 mm)
42” Rail Height: 1.418” x 1.418” x 36.375” (36 mm x 36 mm x 923 mm)

6. Glass Panel Accessory Kit

Glass panel mounting hardware; glass panel not included.

6’ Rail: 67.5” (171 cm)

5. Accessory Infill Kit

Available in 6’ and 8’ lengths for square, colonial and round balusters; horizontal and stair applications.

Includes: 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware

Actual Lengths
6’ Rail: 67.5” (171 cm); 8’ Rail: 91.5” (232 cm)

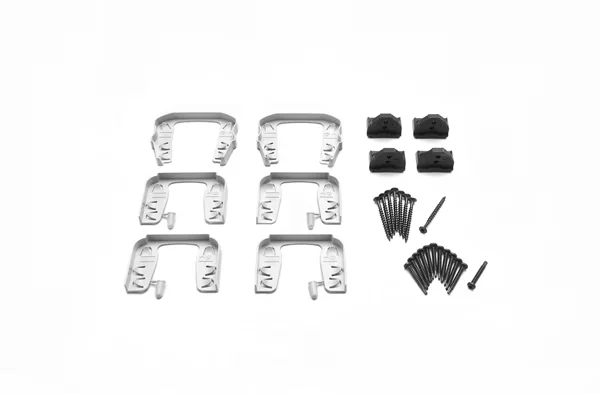

Mounting Hardware for Cut Rails—Horizontal

Contains:
Qty (2) Crown Top Rail Gaskets—Horizontal
Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
Qty (4) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Horizontal
Qty (8) Rail to Post Fasteners
Qty (4) Screw Tip Covers

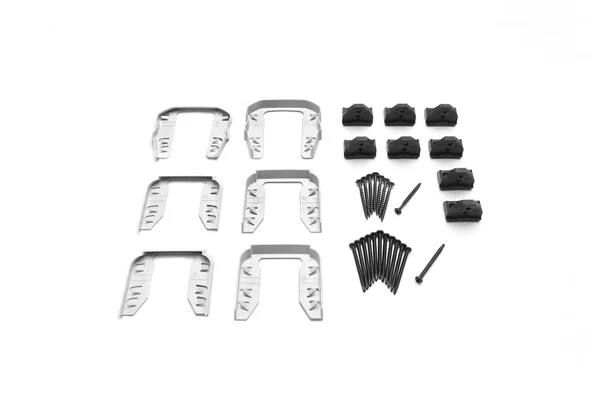

Mounting Hardware for Cut Rails—Stair

Contains:
Qty (1) Crown Top 1 Rail Gaskets—Stair
Qty (1) Crown Top 2 Rail Gaskets—Stair
Qty (2) Universal Top/Bottom 1 Rail Gaskets—Stair
Qty (2) Universal Top/Bottom 2 Rail Gaskets—Stair
Qty (8) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners— Stair
Qty (8) Rail to Post Fasteners
Qty (4) Screw Tip Covers

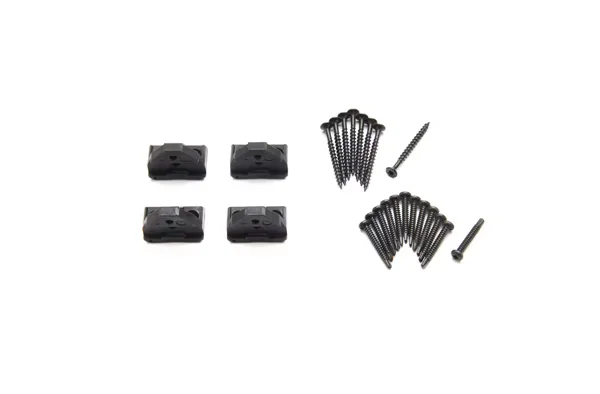

RSB Bracket Pack—Horizontal

Contains:
Qty (4) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Horizontal
Qty (8) Rail to Post Fasteners

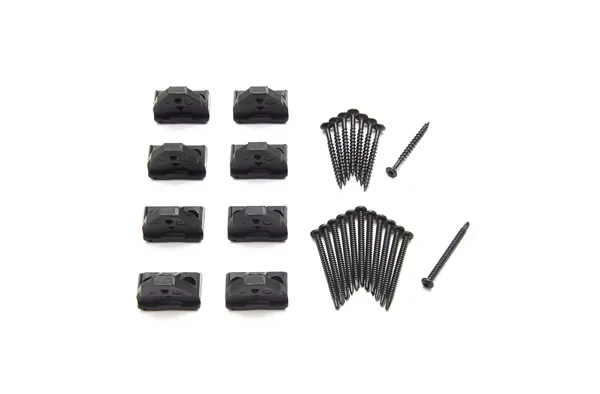

RSB Bracket Pack—Stair

Contains:
Qty (8) RSB Rail Brackets
Qty (8) Rail to Bracket Fasteners—Stair
Qty (8) Rail to Post Fasteners

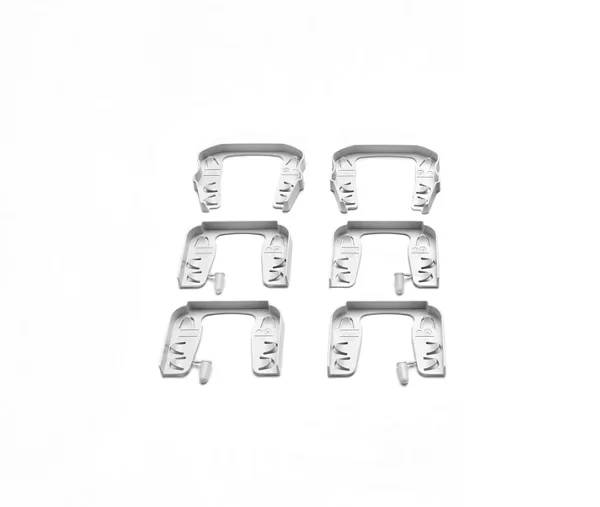

0 Degree Rail Gasket Pack—Horizontal

Contains:
Qty (2) Crown Top Rail Gaskets—Horizontal
Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
