A clean picture-frame border can make a Utah deck look carefully built, but the perimeter is also where hidden-fastener plans most often fail. A field system may leave a consistent reveal across long, straight runs, yet the border turns perpendicular, meets at corners, and ends where a clip may have little or no solid framing to grip.
The dependable approach is to plan the border before the field boards. Use hidden fasteners where the grooved boards and joists support them, then switch to face-fastened or plugged hardware where the perimeter, board ends, and corners demand stronger direct attachment. That hybrid plan matters in West Jordan, Salt Lake City, and throughout the Wasatch Front, where hot sun, freezing temperatures, snow, and seasonal movement all test the layout.
Why Picture Frame Borders Need a Different Fastening Plan
A field of grooved boards can follow one repeated clip pattern. A picture-frame border cannot. Border boards often cross the joists, turn at corners, and finish as short mitered or butt-jointed pieces, so the fastening plan must account for direction changes and limited board width.
The outer board needs solid blocking beneath the perimeter, support at every joist crossing, and a fastening zone that resists splitting or loosening as the board moves. Composite and PVC decking commonly use side-to-side gaps around 3/16 inch to 1/4 inch, while walls and fixed obstructions often require at least 1/2 inch of clearance. Confirm those dimensions with the selected decking manufacturer and fastening system rather than relying on a generic spacer.
Where clips stop doing the job
A clip can secure a grooved field board at a joist, but it may not reach a square-edge border or the end of a board. Mitered corners create another weak point. As temperatures change, the joint can open or shift, placing stress on a fastener that has little direct support.
Use hidden clips in the field, plus face screws or plugs at the border. A finish system can conceal the screw head, but it cannot replace blocking or the manufacturer's fastening schedule. The clean appearance comes from hiding the hardware while maintaining direct attachment.
Practical rule: Treat the border as a structural layout zone, not just trim. Install its blocking before the field boards restrict access.
Install the border first and measure the field inward. Starting with the field can leave an awkward final gap, require a narrow rip, or position the border where a clip cannot seat correctly. Confirm the board profile before ordering. The Utah Deck Supply grooved board tips offer useful guidance for grooved-edge planning.
Draw the deck before building. Mark returns, corners, stairs, breaker boards, joist crossings, blocking lines, and fastener locations. A visual reference such as 10 architectural drawings for designers can help organize the layout, but translate the finished concept into actual framing and fastening points.
In Utah, plan for hot sun, freezing temperatures, snow, and seasonal movement. Those conditions make perimeter blocking and deliberate corner fastening more dependable than extending a field-clip pattern around the entire deck.
Choosing the Right Hidden Fastener System for Borders
The right system depends on where the border sits, what board profile it uses, and whether the fastener can transfer movement into solid framing. A clip that works well between two grooved field boards isn't automatically suitable for a square-edge perimeter board.
Three practical fastening approaches
Standard hidden clips work efficiently along long runs when both boards have compatible grooves and the joists are aligned. They create consistent spacing and keep the field surface clean. Their weakness appears at board ends, outside edges, and tight corners, where the clip may have no groove or insufficient framing.
Face screws with color-matched plugs are usually the more controlled choice for border boards, miter returns, breaker boards, and other locations where a clip can't sit in the intended groove. The screw provides direct attachment into blocking, while the plug reduces the visual impact. TimberTech guidance calls for picture-frame boards to be fastened at every joist location, with PVC fasteners within 1/2 inch of the board edge and composite fasteners at least 3/4 inch from any edge. TimberTech border-installation guidance provides the manufacturer-specific distinction.
Angled edge screws can hide the fastener through the board edge and provide useful lateral resistance when driven into solid blocking. This method takes more setup and depends on the correct jig, bit, board profile, and screw length. It isn't a substitute for checking the decking manual, especially with PVC products that may have different edge-fastening requirements.
Match the fastener to the border location
| Fastener Type | Best Border Location | Holding Power at Ends | Visibility | Utah Climate Suitability |
|---|---|---|---|---|
| Hidden groove clips | Long compatible runs | Limited at unsupported ends | Concealed | Good when spacing and lock rows follow the system |
| Face screws with plugs | Corners, ends, square-edge borders | Direct into blocking | Low after plugging | Strong practical choice when movement and access are planned |
| Angled edge screws | Long perimeter edges with solid blocking | Good when driven correctly | Concealed from above | Useful, but technique and compatibility matter |
| Face screws without plugs | Temporary work or locations covered by trim | Direct | Visible | Functional, but less suited to a finished accent border |
The border should normally combine these methods rather than force one method everywhere. A field clip system remains efficient where its groove pattern is designed to work. The perimeter gets the direct fastening needed to hold the edge and corner.
For installers using a compatible universal clip system, a purpose-built deck fastener installation tool can help maintain repeatable clip placement. The tool still can't correct a border with missing blocking or an incompatible board groove.
Utah Deck Supply's hidden deck fasteners selection is relevant when the takeoff includes grooved field boards, square-edge borders, plugs, screws, and transition details. Product compatibility should be verified against the selected Trex, TimberTech, Deckorators, or Fiberon board profile.
Laying Out Border Boards and Field Spacing
The layout should begin at the perimeter, not at the first field board. A border-first plan establishes the finished outside edge, exposes every support location, and lets the field boards terminate against a measured inside line.
Start with the perimeter
First, verify that the deck framing is square and that the outside rim, joists, and blocking are in the planned positions. Snap reference lines for the border, mark every joist crossing, and identify each miter, butt joint, stair transition, and post interruption.
Add blocking wherever the border needs a fastening surface. The blocking should create a continuous, stable support path along the perimeter, and each joint should land on framing that can accept the required fasteners. If the existing framing doesn't provide that support, the solution is additional blocking or a revised joint location, not a clip driven into empty space.
Dry-fit the border boards before locking in the field. Check the corner relationship, the border width, the direction of the grain or color pattern, and the amount of field area remaining inside the frame.
Set the reveal and spacing
A border reveal is the visible overlap or inset that separates the frame from the field. The exact appearance depends on the board width and design, but the border should be laid out so the field cuts remain practical and the final row doesn't become a narrow, unstable strip.
Field clips commonly establish a 3/16-inch side-to-side gap for compatible composite or PVC boards. Product information for a concealed fastener system describes automatic spacing at that dimension. Use the system's actual spacer or clip, and confirm whether the selected board requires a different gap.
Temperature also affects end spacing. A Trex hidden-fastener guide specifies 1/8-inch end-to-end spacing above 40°F and 3/16 inch below 40°F, with abutting end-to-width gaps of 1/4 inch above 40°F and 1/2 inch below 40°F. Trex spacing guidance should control the field conditions for that product.
Install in a controlled order
- Secure the border perimeter. Pre-drill where the manufacturer requires it, fasten at the planned joist locations, and keep the miter or butt joint tight during dry fitting.
- Measure the field inset. Measure from the inside face of the border to the opposite border, account for the required side gaps, and mark the field starting line.
- Install the field boards. Use the compatible hidden clips at each joist, check the line frequently, and add any specified lock rows to limit thermal creep.
A useful material takeoff should include the field clip pattern, starter clips, border screws or plugs, blocking, and any edge or transition hardware. The Utah Deck Supply measuring guide can help organize the deck dimensions before a quote is prepared.
Corner Details and Utah Climate Considerations
Corners reveal weak planning before straight runs do. Hidden clips alone cannot secure a picture-frame border because they are designed for grooved field boards, not square-edge perimeter boards and angled joints. Plan a hybrid system: clips for the field, direct screws or approved plugs for the border, and blocking beneath every border fastener.
Mitered corners
A miter joins two border boards with angled cuts and creates a continuous visual line. It requires accurate dry fitting, solid support below both returns, and fasteners aligned with the framing. Keep the joint supported while checking the border dimensions, because a precise cut cannot compensate for movement or inadequate blocking.
Thermal movement shows quickly across a diagonal joint. The finish detail should hold the boards in position without clamping them so tightly that expansion leads to buckling or splitting. Follow the decking manufacturer's requirements for pre-drilling, screw type, edge distance, and permitted fastening locations.
Butt joints with a planned reveal
A butt joint ends one border board against another with a deliberate reveal. It is easier to support, measure, and repair, especially at corners exposed to strong sun, snow, and ice. Fasten both boards into blocking, keep the cuts square, and maintain the specified end gap rather than forcing the pieces together.
A miter may suit a clean continuous appearance. A butt joint can provide a more forgiving service detail where temperature changes are pronounced. Choose the joint from the product instructions and site exposure, not appearance alone.
Account for Wasatch Front exposure
Utah decks face intense summer sun, cold winter nights, snow loads, and freeze-thaw cycles. Set perimeter clearance from the selected product's temperature chart. Do not use one assumed gap for every board or corner.
The field may also require lock rows or edge-fastener rows every 4 to 6 board courses to limit thermal creep. Keep movement space at walls and fixed obstructions, and match the row pattern to the selected system. The border remains separately secured with direct perimeter fastening.
For the material takeoff, include clips, border screws or approved plugs, blocking, and labor for pre-drilling and corner fitting. Review the cost of hidden fasteners for composite alongside board compatibility and perimeter hardware. Confirm local framing and fastening requirements with the applicable code and the manufacturer's installation instructions before work begins.
Tooling Materials and Sample Deck Layouts
A reliable takeoff separates the border from the field. The border needs square-edge or approved perimeter boards, blocking, face screws or plugs, and corner hardware. The field needs compatible grooved boards, starter hardware, universal clips, and any required lock rows.
Build the checklist by task
Layout and marking require a tape measure, chalk line, square, straightedge, level, pencils, and string line. The first reference line controls every later board, so it deserves more attention than the speed of the first installation pass.
Cutting and fitting call for a saw suited to composite or PVC work, a fine-tooth blade, clamps, shims, and a clean work surface. A router or groove-cutting setup may be appropriate only when the board manufacturer permits field routing.

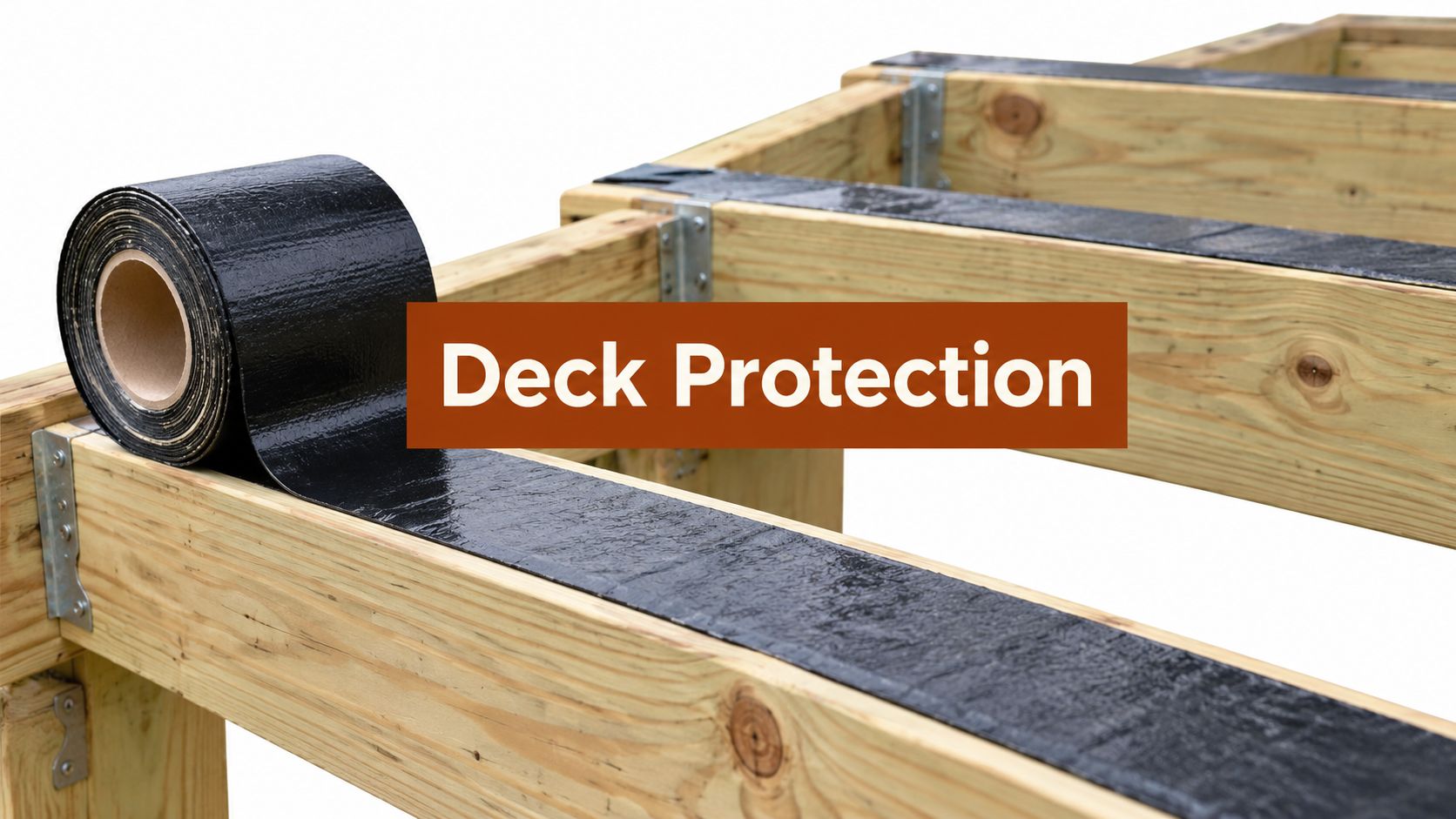

Blocking and protection include framing lumber, structural connectors, joist tape, flashing, and the correct exterior fasteners. Utah Deck Supply carries deck framing hardware for takeoffs that combine lumber support, connectors, joist protection, and perimeter fastening.
Fastening includes starter clips, field clips, border screws, color-matched plugs where approved, driver bits, a drill for pre-drilling, and a clutch-controlled driver. Keep clips free of sawdust and avoid over-tightening, which can restrict board movement or damage the clip.
Exact fastener quantities depend on the board length, joist layout, border configuration, and manufacturer schedule. A supplier should calculate them from the actual drawing rather than applying a universal count per linear foot. The same caution applies to sample deck sizes. Without the board length, orientation, waste factor, stair details, and clip system, a precise count would be misleading.
| Deck Size | Border Boards | Hidden Clips | Face Screws | Blocking Runs |
|---|---|---|---|---|
| Rectangular deck | Measure each perimeter run and account for joints | Count each compatible field-board and joist intersection | Count every required border support and corner fastening point | Continuous perimeter support, plus joint blocking |
| Deck with a step-down border | Add the step returns and transition pieces separately | Count each field zone independently | Add screws for step edges and square-edge transitions | Separate blocking runs beneath each level and return |
| Multi-level wrap | Break the takeoff into each deck plane and outside return | Calculate by field zone and board direction | Include every perimeter, stair, breaker-board, and end location | Continuous support at each level, joint, and corner |
The practical goal is not to guess a bundle size. It's to bring a scaled plan to the supplier, confirm board profiles and compatible hardware, then allow a reasonable project allowance for cuts, damaged pieces, and field adjustments. The deck framing hardware guide can help organize the supporting hardware before the final materials list is issued.
Next Steps for Your Deck Project
A picture-frame border works when the fastening plan follows the perimeter's actual demands. Hidden clips belong in the compatible field, while border boards, corners, ends, stairs, and breaker transitions often need face-fastened or plugged connections into solid blocking.
The most overlooked task is blocking. A clean miter won't stay clean if the joint floats between supports, and a concealed clip won't hold an outer edge that has no reliable framing beneath it. Border-first layout also protects the field spacing, gives the installer a defined stopping line, and reduces last-row compromises.
For Utah homeowners, DIY builders, and contractors across West Jordan, Salt Lake City, South Jordan, Sandy, Draper, Herriman, Lehi, Ogden, Provo, and the broader Wasatch Front, the next step is to match the chosen composite or PVC board with its approved clips, screws, plugs, joist tape, framing hardware, and railing details. Manufacturer instructions and local code requirements should remain the final authority for installation.
Utah Deck Supply helps homeowners and contractors assemble compatible decking, PVC or composite boards, border fasteners, hidden clips, lumber, framing hardware, joist tape, and railing materials for Utah projects. Visit the Utah Deck Supply showroom in West Jordan, call 385-993-5492, or request a deck materials quote with the deck dimensions and border layout.
